Wiseco Pro-Lite Piston Kit with Gaskets - Kawasaki KX100 / Suzuki RM100 (1998-2013) - 53.00mm Bore (+0.50mm Oversize) - Electrofusion - 2-Stroke
- Ships next business day
- 30-day hassle-free returns
- Call us: 541-668-7503
- Secure checkout — Pay in 4 available
Wiseco Pro-Lite Piston Kit with Gaskets - Kawasaki KX100 / Suzuki RM100 - +0.50mm Oversize
Premium Wiseco Pro-Lite piston kit with complete gasket set for the Kawasaki KX100 and Suzuki RM100 mini MX bikes. This is the +0.50mm OVERSIZE (53.00mm) kit for worn cylinders requiring sleeving or replating!
⚠️ Oversize Piston - Sleeving/Replating Required
This piston is +0.50mm oversize and fits Electrofusion bore cylinders. Cylinder sleeving or replating to 53.00mm is required for proper fit.

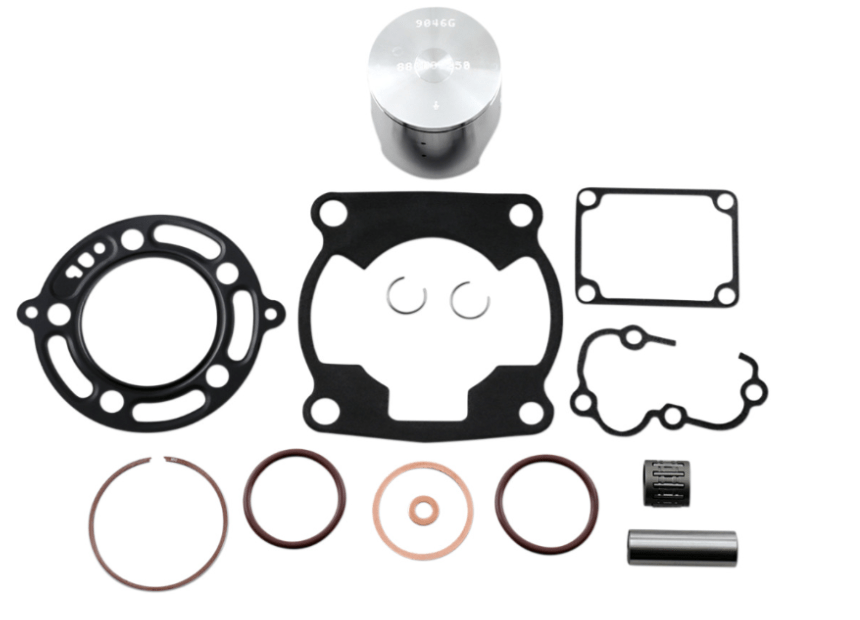

Kit Includes
- Pro-Lite Series Piston
- Ring Set
- Wrist Pin
- Circlips
- Bearing
- Complete Gasket Set
Key Features
- Pro-Lite Series - lightweight forged design for maximum throttle response
- 4032 aluminum alloy construction
- Designed for Electrofusion bore cylinders
- Complete top-end gasket kit included
- 2-brand coverage - Kawasaki & Suzuki!
- 16 years of fitment (1998-2013)
Piston Specifications
- Bore Size: 53.00 mm (+0.50mm Oversize)
- Piston Diameter: 52.95 mm
- Stroke Length: 45.80 mm
- Material: 4032 Aluminum Alloy
- Skirt Coating: Non-Coated
Engine Specifications
- Displacement: 99cc
- Engine Type: 2-Stroke
- Weight: 0.9 lbs
Fitment
Kawasaki:
- KX100: 1998-2009, 2011-2013
- KX 100: 2010
Suzuki:
- RM100: 2003
- RM 100: 2004-2005
Important Notes
- Wiseco ring types are not interchangeable
- Wiseco pistons can be fitted only with Wiseco rings
- Cylinder sleeves must be purchased separately
- Requires cylinder sleeving or replating to 53.00mm
