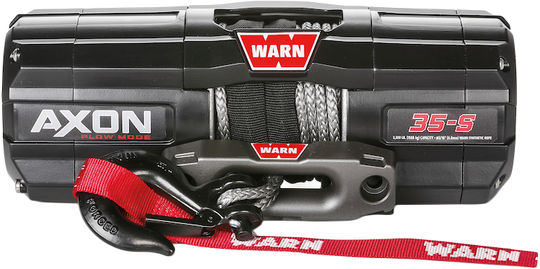

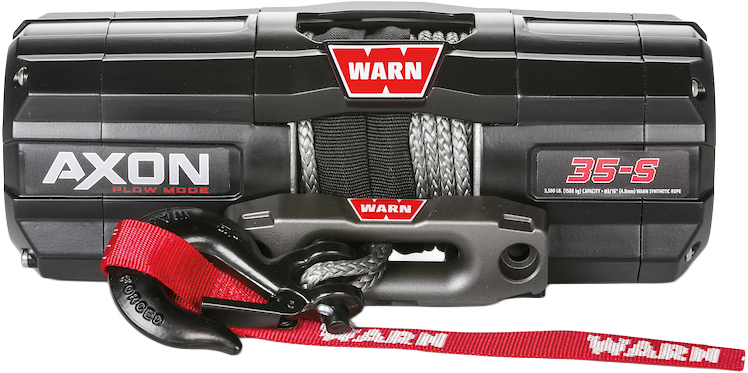

Warn AXON 35-S Plow Mode Winch - 3500 lb Synthetic Rope ATV / UTV

✓ Fits

• Universal fit for ATVs and Side-by-Sides with a WARN AXON compatible winch mount (4.87 x 3 in bolt pattern, 4 bolts)
• Vehicle-specific winch mount sold separately for most applications
• 3,500 lb rated line pull, sized for large ATVs and smaller UTVs

✓ Features

• All-new Plow Mode: set upper and lower blade travel limits and use one-touch Auto Move from your smartphone (requires the HUB Wireless Receiver, sold separately)
• Motactor combines the motor and digital contactor in one sealed unit for easier installation and top performance
• Digital control gives live load, motor temperature and battery feedback
• Rockerbar digital control switch with handlebar mount adaptor included (HUB Wireless Receiver 61-103940 sold separately)
• IP68 submersion and IP69K high-pressure spray rated, the best waterproof ratings available
• All-metal construction with a one-piece tie plate for increased structural rigidity
• Clutch design based on over 75 years of WARN 4WD hub lock know-how
• Load-holding brake for great control
• Smooth, reliable all-metal three-stage planetary gear train
• Satin black powder-coated finish and stainless steel fasteners for corrosion resistance
• Designed, engineered and assembled in the USA

✓ What's Included

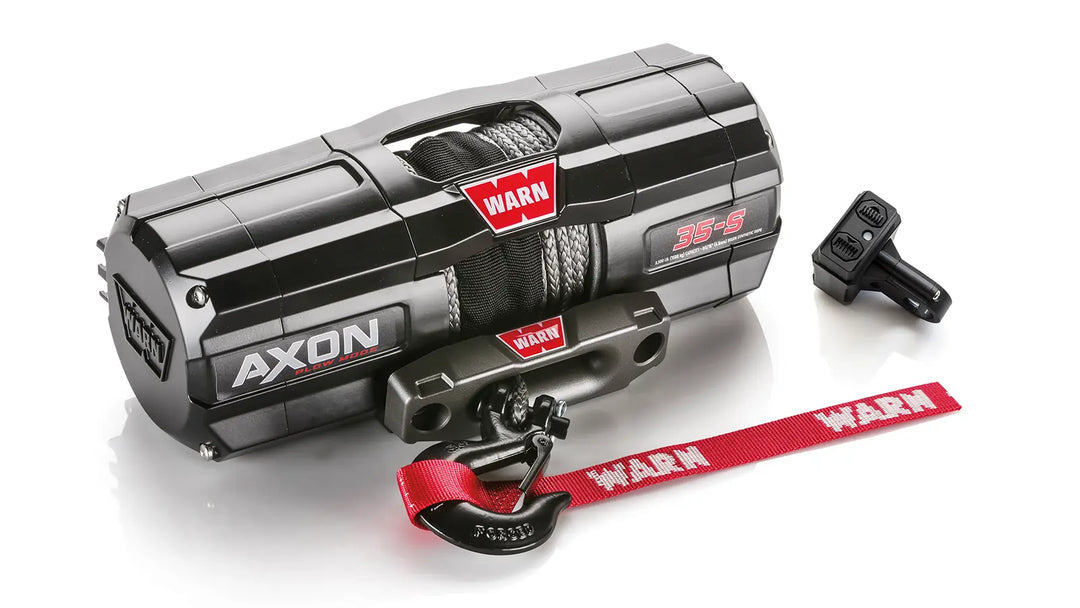

• Warn AXON 35-S winch with integrated Motactor
• 50 ft of lightweight, easy-to-handle 3/16 in Spydura synthetic rope with black hook
• Epic hawse fairlead
• Rockerbar digital control switch with handlebar mount adaptor
• Owner's manual

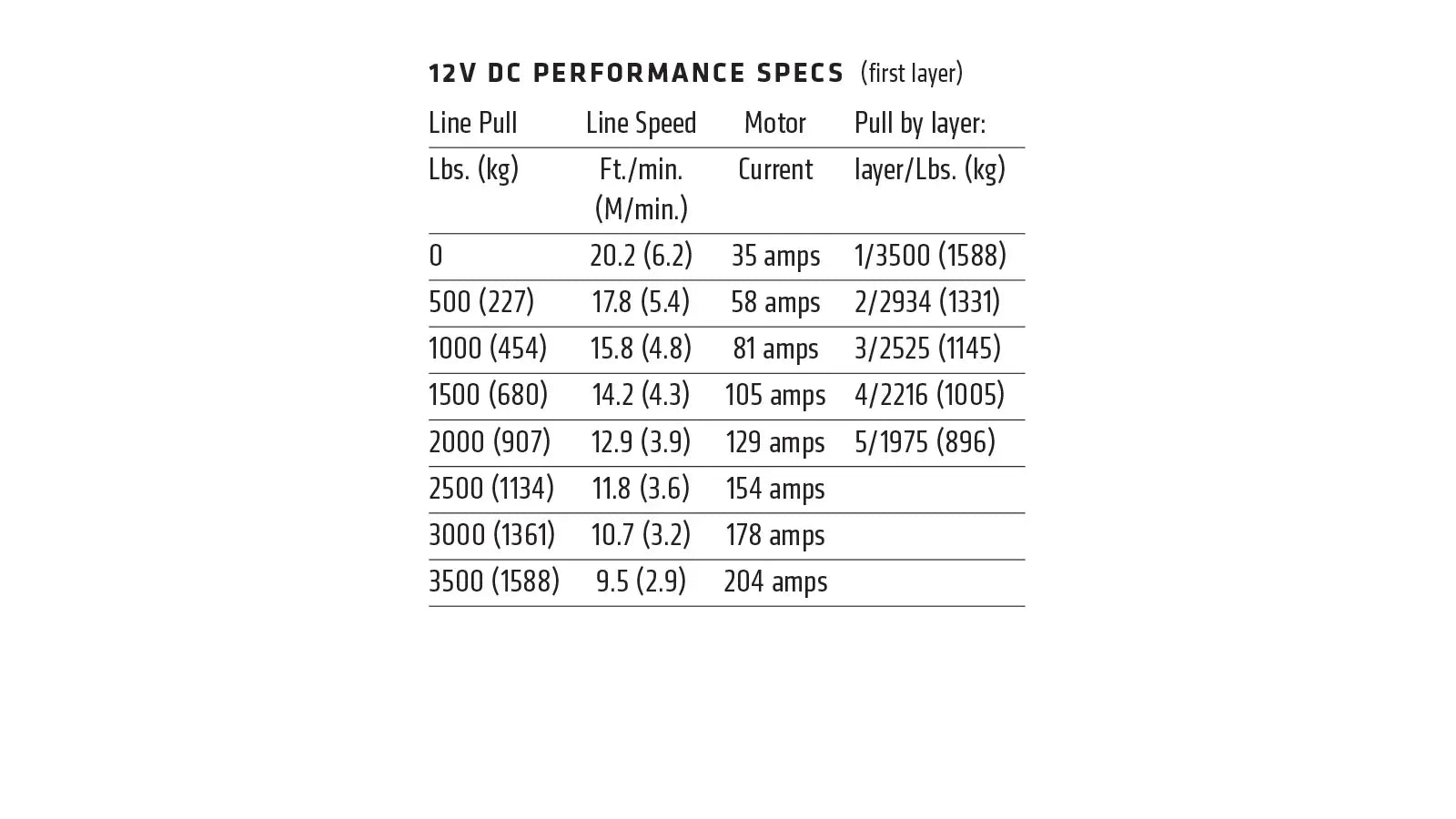

✓ Specs

• Rated line pull: 3,500 lb
• Rope: 50 ft of 3/16 in Spydura synthetic
• Fairlead: Epic hawse
• Gearing: 3-stage planetary, 168:1 ratio
• Motor: 12V permanent magnet
• Brake: automatic drum, load-holding

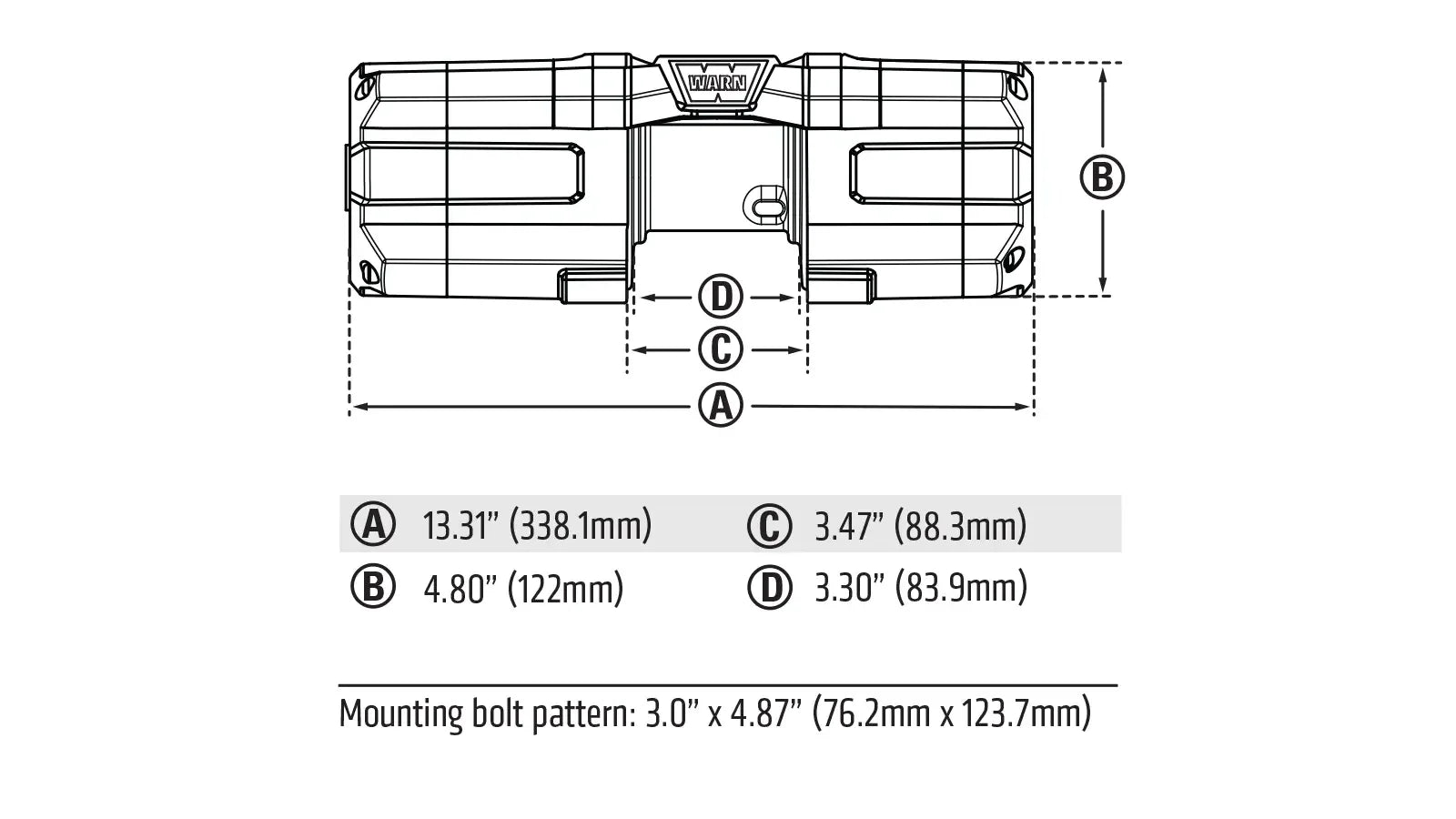

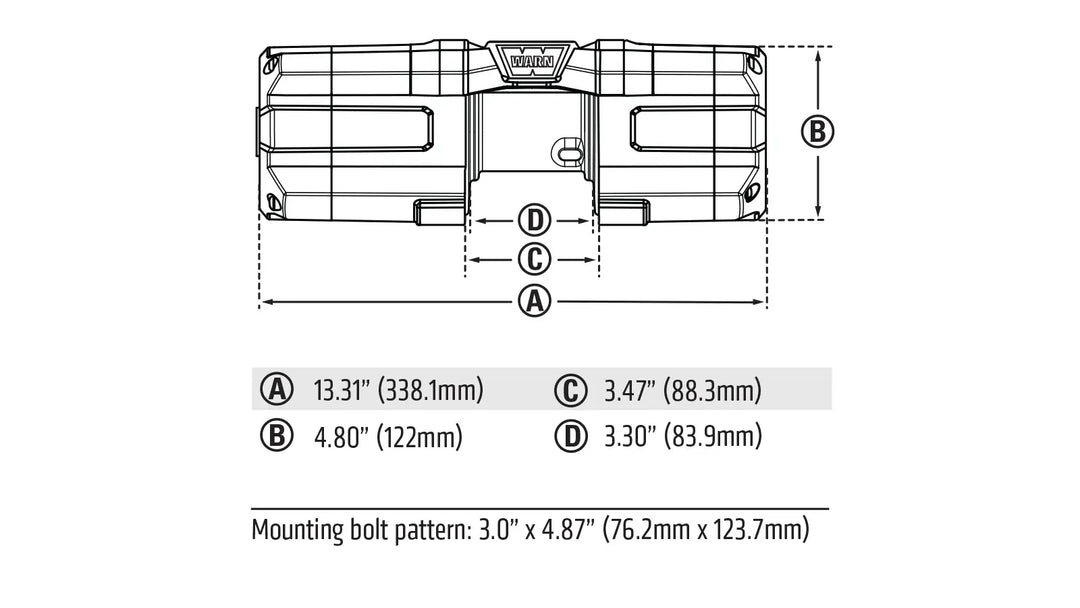

• Mounting bolt pattern: 4.87 x 3 in
• Dimensions (L x W x H): 13.3 x 4.6 x 4.8 in
• Plow Mode: yes
• Shipping weight: approx. 26.5 lb
• Manufacturer: Warn Industries
• Manufacturer part number: 110230

✓ Warranty

• Mechanical: limited lifetime
• Electrical: 3 years

Warranty Claims: For installed winch warranty or missing parts, contact Warn directly at (800) 543-9276 or cs@warn.com. For uninstalled winch issues or fulfillment concerns, contact DuneGoonShop.
