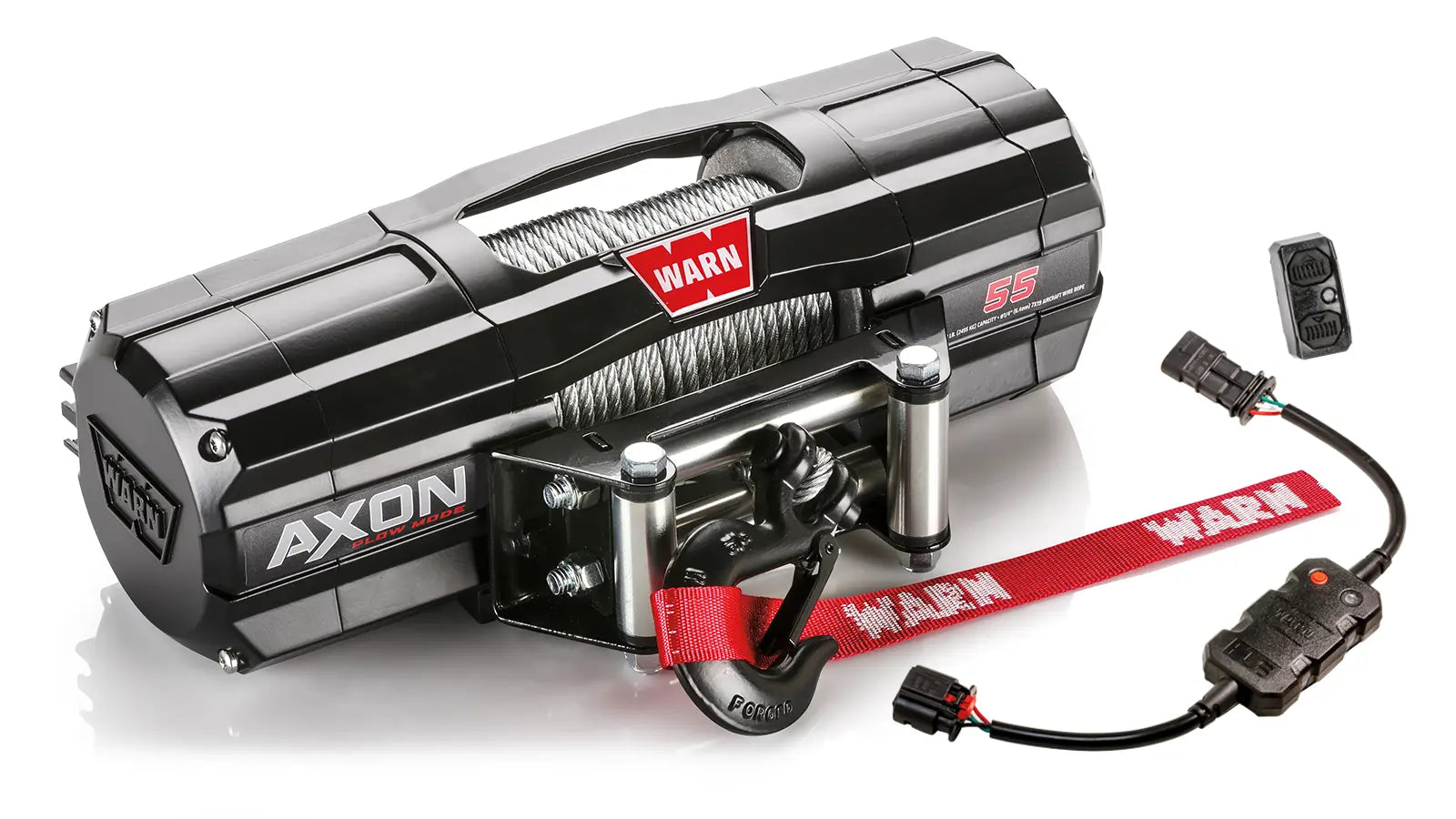

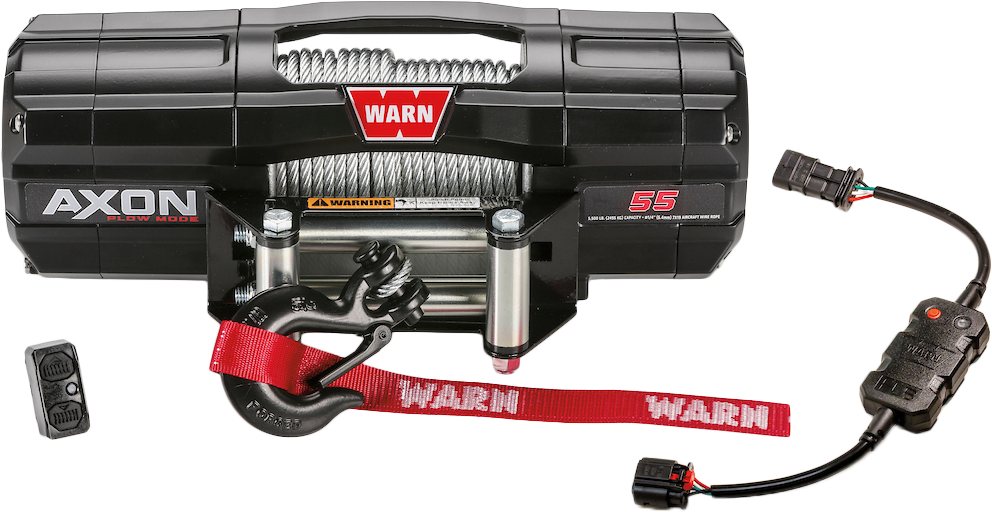

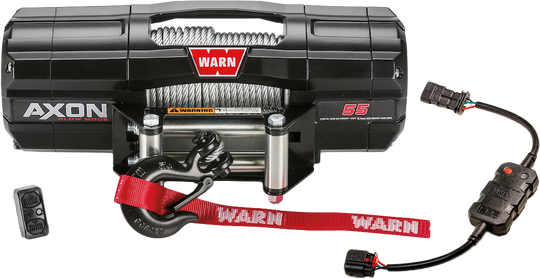

Warn AXON 55 Plow Mode Winch - 5500 lb Steel Rope UTV / ATV
- Ships next business day
- 30-day hassle-free returns
- Call us: 541-668-7503
- Secure checkout — Pay in 4 available
✓ Fits
- Universal fit for ATVs and Side-by-Sides with a WARN AXON compatible winch mount (6.59 x 3 in bolt pattern, 4 bolts)
- Vehicle-specific winch mount sold separately for most applications
- 5,500 lb rated line pull, sized for the biggest UTVs and the biggest pulls
✓ Features
- All-new Plow Mode: set upper and lower blade travel limits and use one-touch Auto Move from your smartphone
- Motactor combines the motor and digital contactor in one sealed unit for easier installation and top performance
- Digital control gives live load, motor temperature and battery feedback
- Rockerbar digital control switch plus HUB Wireless Receiver included for smartphone control
- IP68 submersion and IP69K high-pressure spray rated, the best waterproof ratings available
- All-metal construction with a one-piece tie plate for increased structural rigidity
- Clutch design based on over 75 years of WARN 4WD hub lock know-how
- Load-holding brake for great control
- Smooth, reliable all-metal three-stage planetary gear train
- Satin black powder-coated finish and stainless steel fasteners for corrosion resistance
- Designed, engineered and assembled in the USA
✓ What's Included
- Warn AXON 55 winch with integrated Motactor
- 50 ft of durable 1/4 in steel wire rope with black hook
- Roller fairlead
- Rockerbar digital control switch
- HUB Wireless Receiver
- Owner's manual

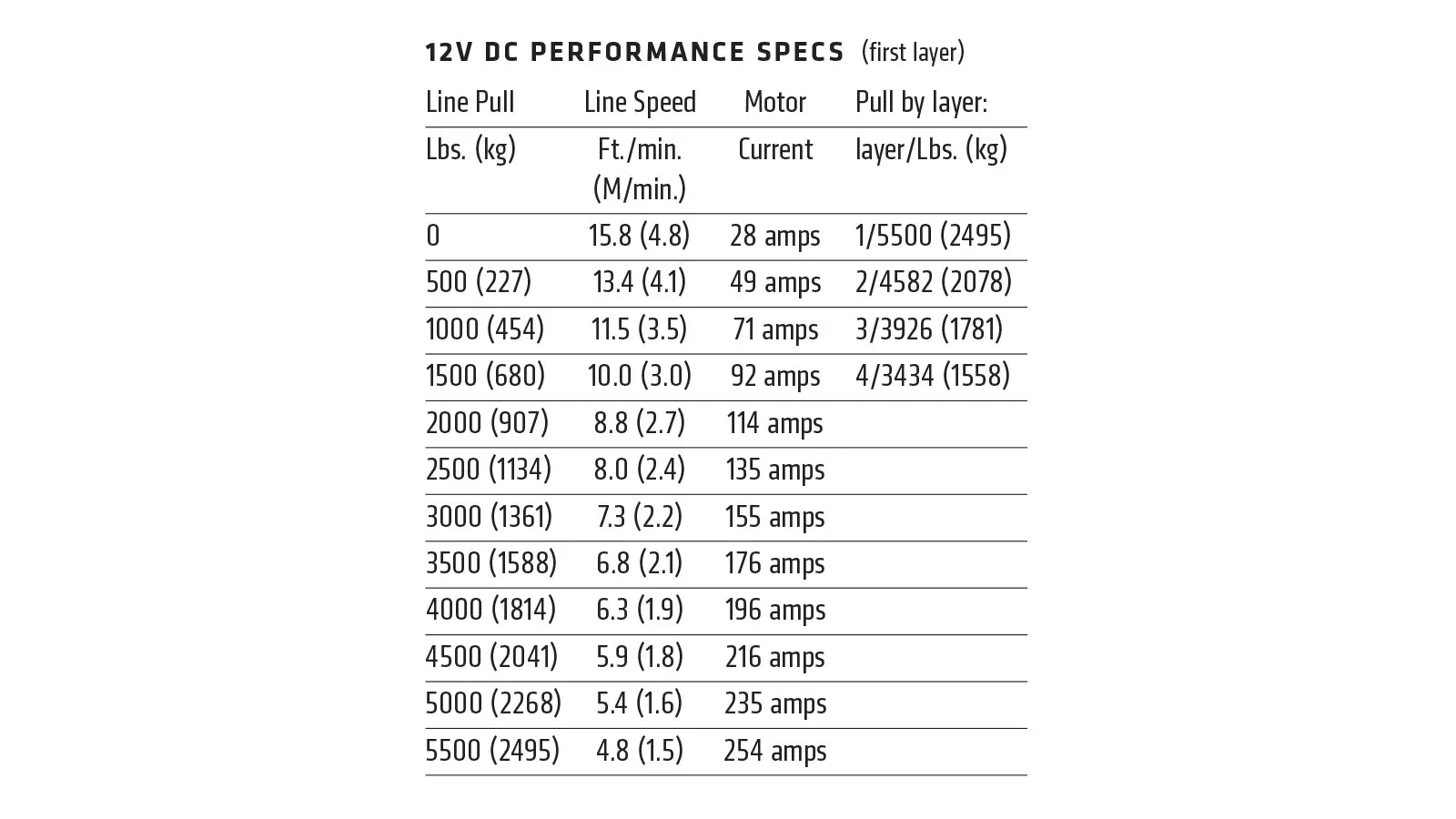

✓ Specs
- Rated line pull: 5,500 lb
- Rope: 50 ft of 1/4 in steel wire
- Fairlead: Roller
- Gearing: 3-stage planetary, 239:1 ratio
- Motor: 12V permanent magnet
- Brake: automatic drum, load-holding

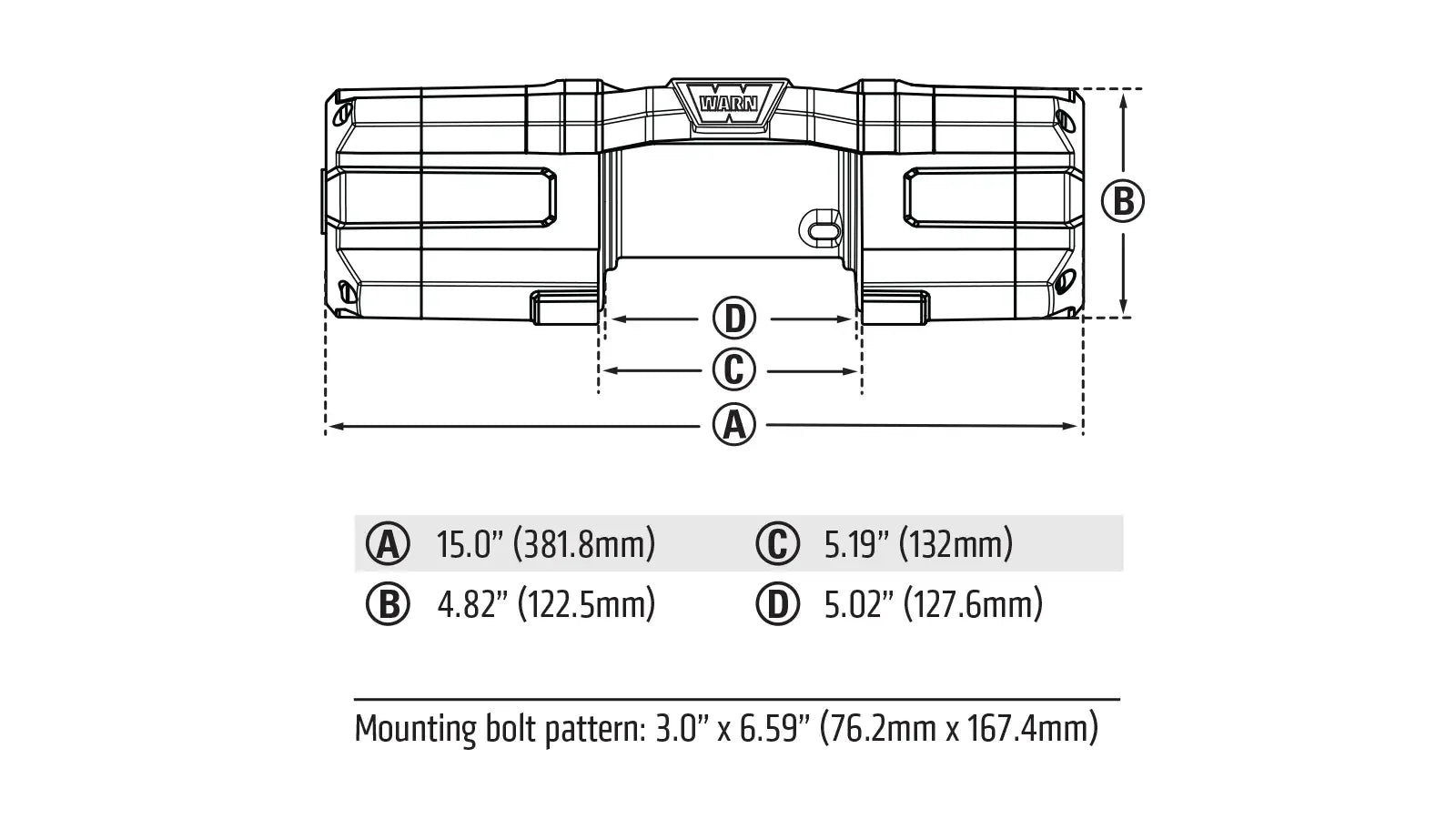

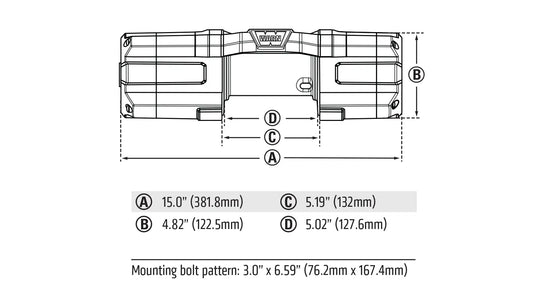

- Mounting bolt pattern: 6.59 x 3 in
- Dimensions (L x W x H): 15 x 4.6 x 4.8 in
- Plow Mode: yes
- Shipping weight: approx. 35 lb
- Manufacturer: Warn Industries
- Manufacturer part number: 110255
✓ Warranty
- Mechanical: limited lifetime
- Electrical: 3 years
Warranty Claims: For installed winch warranty or missing parts, contact Warn directly at (800) 543-9276 or cs@warn.com. For uninstalled winch issues or fulfillment concerns, contact DuneGoonShop.
