Pistons to freshen up or build up your Yamaha Raptor 700 top end, from Wiseco, CP-Carrillo, JE, Vertex and more.
Not sure which piston you need? Message us with your build goals (stock rebuild, big bore, or race fuel) and we'll match you to the right kit and tell you exactly what else you need to finish the top end.
Whether you're doing a stock-bore rebuild to bring back compression and reliability, or going big bore for more cubes and power, we carry the pistons to get it done.
✓ How to Choose
- Stock rebuild: A 102mm standard-bore piston brings a tired motor back to life. Best when your cylinder still measures in spec and just needs a hone.
- Big bore: Going over on bore (104mm and up) adds displacement and power, but your cylinder has to be bored to match, or you run a big-bore cylinder.
- Compression: Higher-compression pistons wake up throttle response and power, but the higher you go the more they demand race fuel or a blend. Pump-gas builds should stay in the moderate range.
✓ Stock Reference
- Displacement: 686cc
- Stock bore: 102mm
- Stock compression: roughly 9.2:1
✓ What a Piston Kit Includes

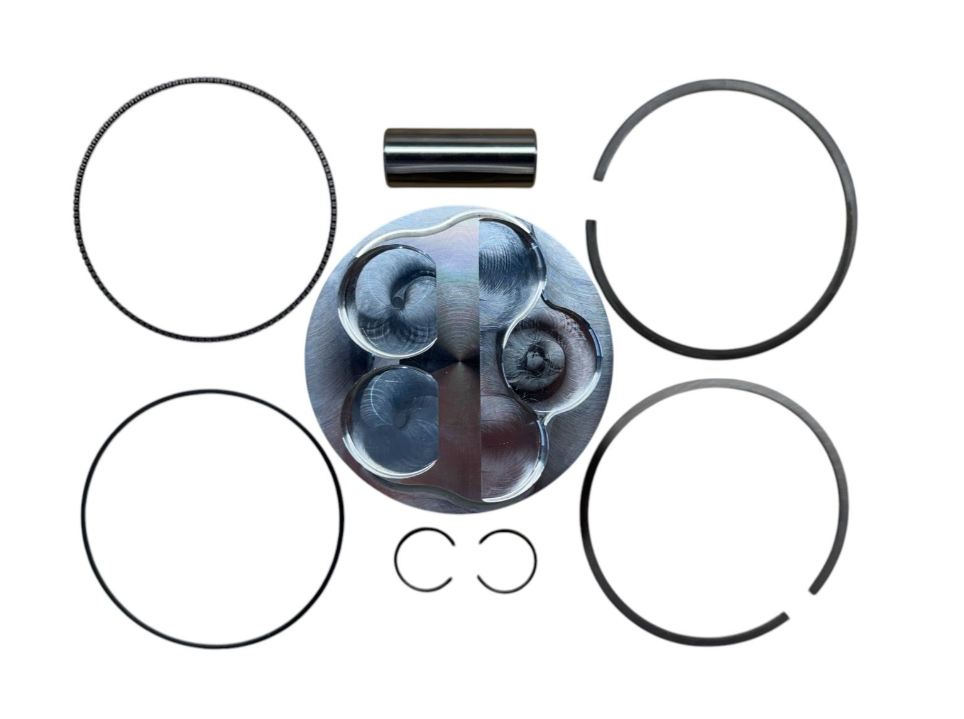

Most kits come with the piston, rings, wrist pin, and circlips. You'll still want fresh top-end gaskets (head gasket, base gasket, cam chain), and a big-bore piston means machine work to bore and hone the cylinder to your new size. Not sure what your build needs? Reach out and we'll put a parts list together.
