KFX400 / LT-Z400 / DR-Z400 90mm Stock Bore Race Kit – Athena (2000-2016)
- Ships next business day
- 30-day hassle-free returns
- Call us: 541-668-7503
- Secure checkout — Pay in 4 available
Rebuild with factory-level performance—no machining required. Bolt-on stock bore kit with Factory Works porting, 12.2:1 piston, and race-proven durability for ATV, supermoto, or dual-sport builds.
The Athena P400510100001 is a complete 90mm stock bore race cylinder kit for 2000–2016 Kawasaki KFX400/KLX400, Suzuki LT-Z400/DR-Z400, and Arctic Cat DVX400. Features nickel-carbide cylinder with Factory Works porting, 12.2:1 forged domed piston, hard-anodized power valves, and full gasket set. Cylinder head not included.

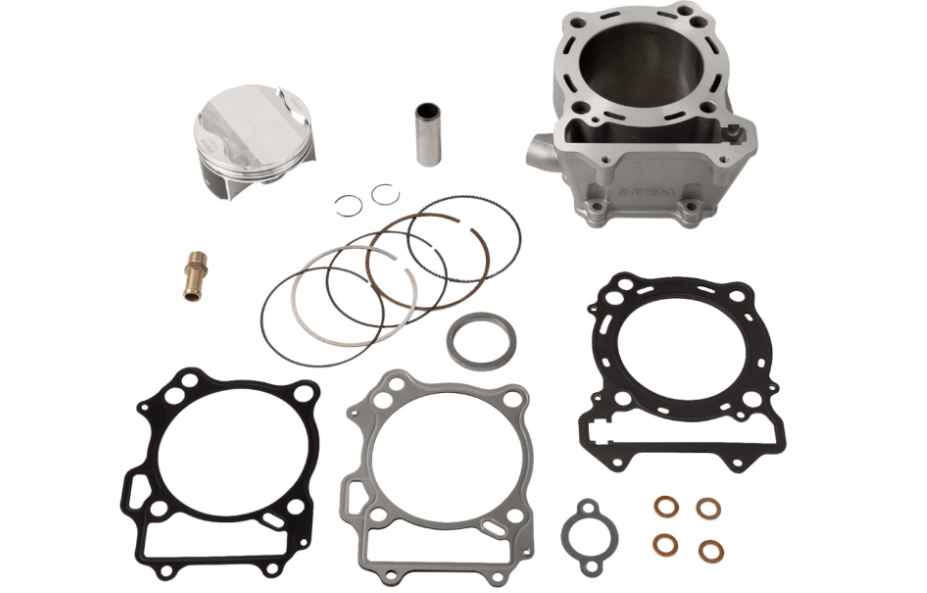

What's Included

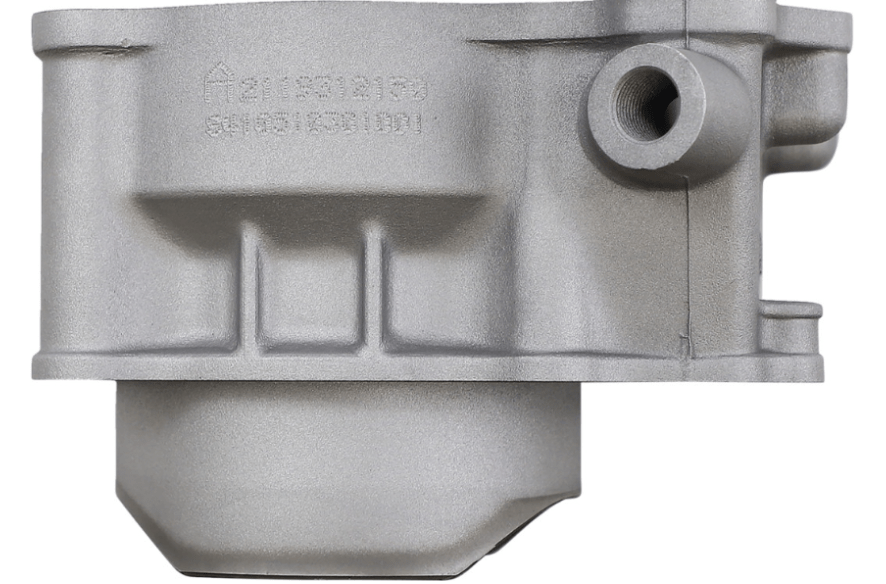

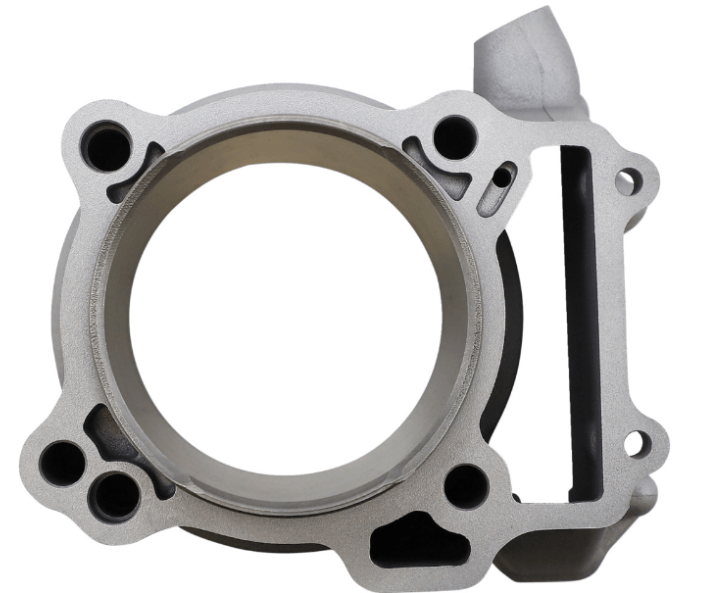

- 90mm Nickel-Carbide Cylinder – Factory Works porting
- Forged Domed Piston Kit – 12.2:1 compression, rings, pin, clips
- Hard-Anodized Power Valves – high-flow, non-OEM
- Athena Top-End Gasket Set – head/base gaskets, seals, hardware
Key Features
- 90mm stock bore — direct OEM replacement, no boring required
- Nickel-carbide plating — extreme durability, low friction
- Factory Works porting — max airflow, race-tuned performance
- 12.2:1 forged piston — aggressive mid-top power
- Hard-anodized power valves — faster response, longer life
- Made in Italy — pro-grade precision
Fitment
- 2003–2006 Kawasaki KFX400
- 2003–2006 Kawasaki KLX400 / KLX400R
- 2003–2014 Suzuki LT-Z400 QuadSport Z / LE / SE
- 2000–2016 Suzuki DR-Z400 (all variants)
- 2004–2008 Arctic Cat DVX400
Install Notes
- Reuses OEM cylinder head (not included)
- Bolt-on install — no machining required
- Advanced install — top-end rebuild experience recommended
- Jetting/fuel tuning may be required for optimal performance
