  • Ships next business day
  • 30-day hassle-free returns
  • Call us: 541-668-7503
  • Secure checkout — Pay in 4 available
$934.99
/
Shipping calculated at checkout.

✓ Fits

  • Universal fit for ATVs and Side-by-Sides with a WARN AXON compatible winch mount
  • Short drum design built for tight mounting spaces where a full-size winch won't fit
  • Vehicle-specific winch mount sold separately for most applications
  • 4,500 lb rated line pull, sized for UTVs and Side-by-Sides

✓ Features

  • All-new Plow Mode: set upper and lower blade travel limits and use one-touch Auto Move from your smartphone
  • Motactor combines the motor and digital contactor in one sealed unit for easier installation and top performance
  • Digital control gives live load, motor temperature and battery feedback
  • Rockerbar digital control switch plus HUB Wireless Receiver included for smartphone control
  • IP68 submersion and IP69K high-pressure spray rated, the best waterproof ratings available
  • All-metal construction with a one-piece tie plate for increased structural rigidity
  • Clutch design based on over 75 years of WARN 4WD hub lock know-how
  • Load-holding brake for great control
  • Smooth, reliable all-metal three-stage planetary gear train
  • Satin black powder-coated finish and stainless steel fasteners for corrosion resistance
  • Designed, engineered and assembled in the USA

✓ What's Included

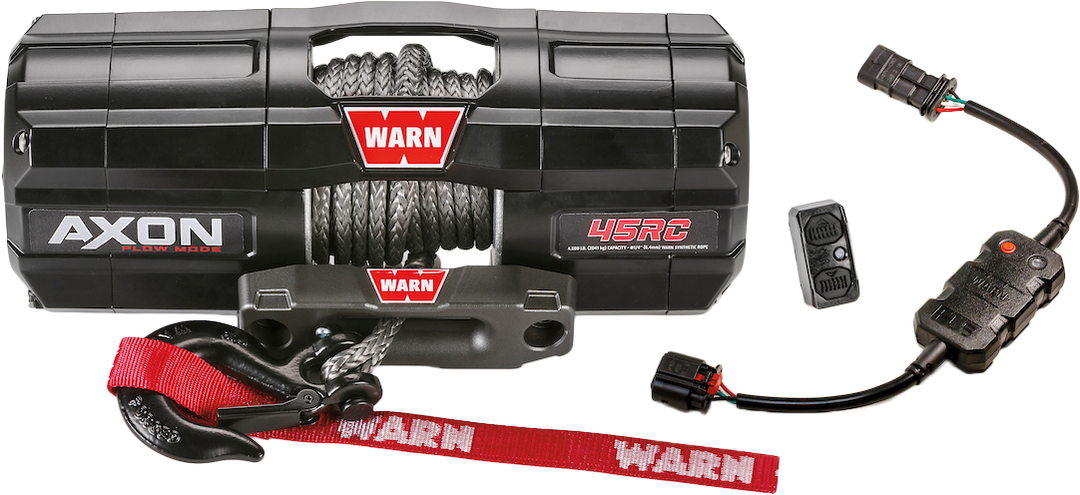

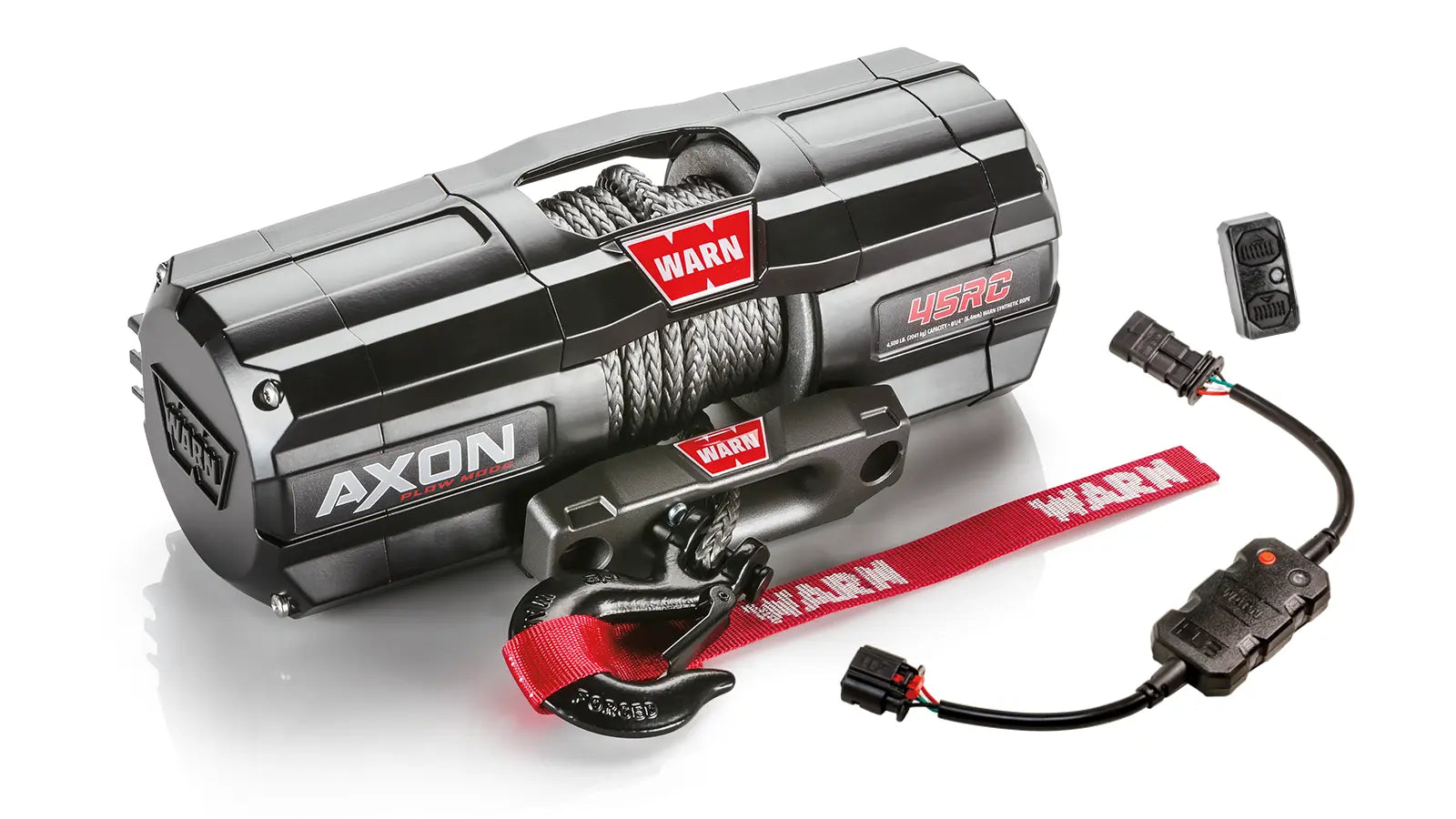

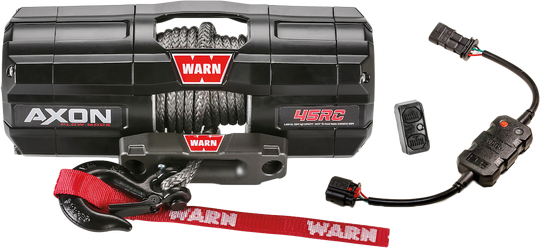

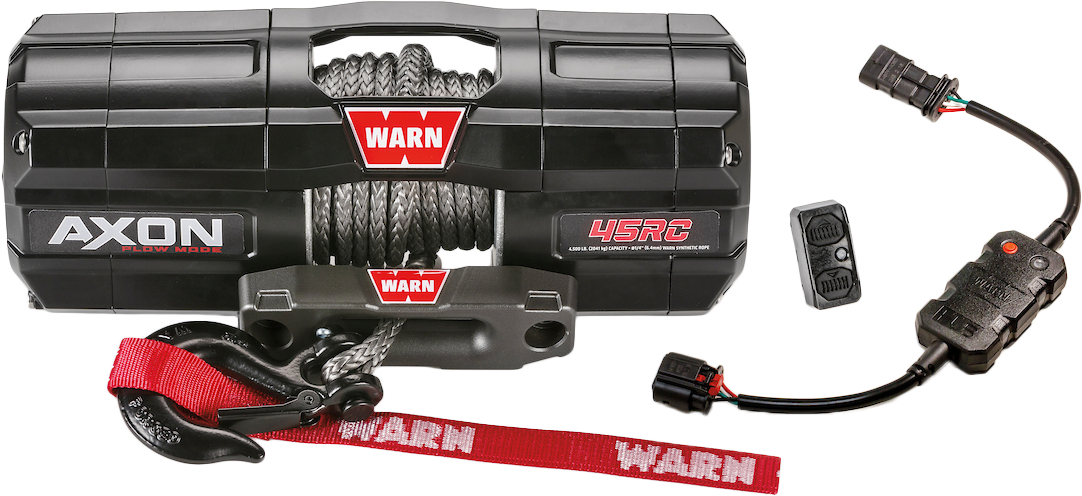

  • Warn AXON 45RC winch with integrated Motactor
  • 27 ft of lightweight, easy-to-handle 1/4 in Spydura synthetic rope with black hook
  • Epic hawse fairlead
  • Rockerbar digital control switch
  • HUB Wireless Receiver
  • Owner's manual

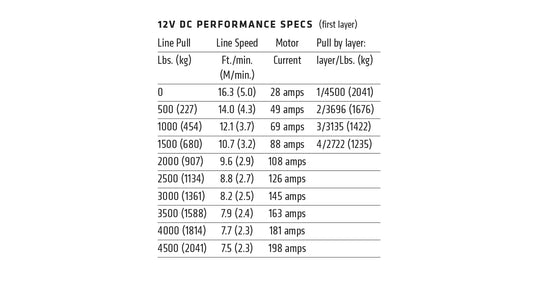

✓ Specs

  • Rated line pull: 4,500 lb
  • Rope: 27 ft of 1/4 in Spydura synthetic
  • Fairlead: Epic hawse
  • Gearing: 3-stage planetary
  • Motor: 12V permanent magnet
  • Brake: automatic drum, load-holding
  • Plow Mode: yes
  • Shipping weight: approx. 27 lb
  • Manufacturer: Warn Industries
  • Manufacturer part number: 110340

✓ Warranty

  • Mechanical: limited lifetime
  • Electrical: 3 years

Warranty Claims: For installed winch warranty or missing parts, contact Warn directly at (800) 543-9276 or cs@warn.com. For uninstalled winch issues or fulfillment concerns, contact DuneGoonShop.
